Panel Technology HDR Bright Panel Plus /4K LCD
Resolution (W x H) 4K Ultra HD/3,840 x 2,160
Motion Technology 4K 1500 Hz BMR
Multi HDR Support*2 HDR10+ Adaptive/HDR10/HLG/DolbyVision
Dimming/Contrast Local Dimming
Colour Space Wide Colour Spectrum
HDR10+ Adaptive Y
Filmmaker Mode Y (with intelligent sensing)
Processor/Engine HCX Processor
Picture Mode Dynamic/Normal/Cinema/True Cinema/FILMMAKER MODE/Sport/Game/DolbyVision (Vivid/Bright/Dark)
Surround Surround Sound
Speaker Output 20 W (10 W x 2)
Sound Mode User/Standard/Vivid/Sports/Movie/Music/News
Smart TV Android
Google Assistant*3 Built-in Y
Works with Google Assistant Y
Easy Mirroring/Chromecast built-in Chromecast built-in
Media Player Y
Support Format AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/WAV, JPEG
Wireless LAN Built-in*7 Y
Bluetooth*8 Y HID / HOGP (Keyboard/Mouse) A2DP (Stereo Audio Out Single)
Bluetooth Audio Link*9 Y
HDMI Inputs*10 3 (side 2, rear 1)
HDCP Y (HDCP2.3)
HDMI Support Feature ARC (Audio Return Channel) (Input 2 )
ALLM (Auto Low Latency Mode ) (All inputs)
USB 2 (side; USB 2.0 x 2)
CI (Common Interface) 1 (CI Plus, Version 1.4, ECP)
Analogue Video Input RCA phono type x 1 (rear)
Digital Audio Output (Optical) 1 (rear)
Headphone Output 1 (side)
Digital Tuner DVB-T/T2/DVB-S2/DVB-C
Analogue Tuner Y
Data Broadcasting Hbb TV
Teletext Reception 500P
USB-HDD Recording*12 Y (w/ Rewind live TV)
On Screen Display Menu Languages 27 Languages*19
Design Slim Design

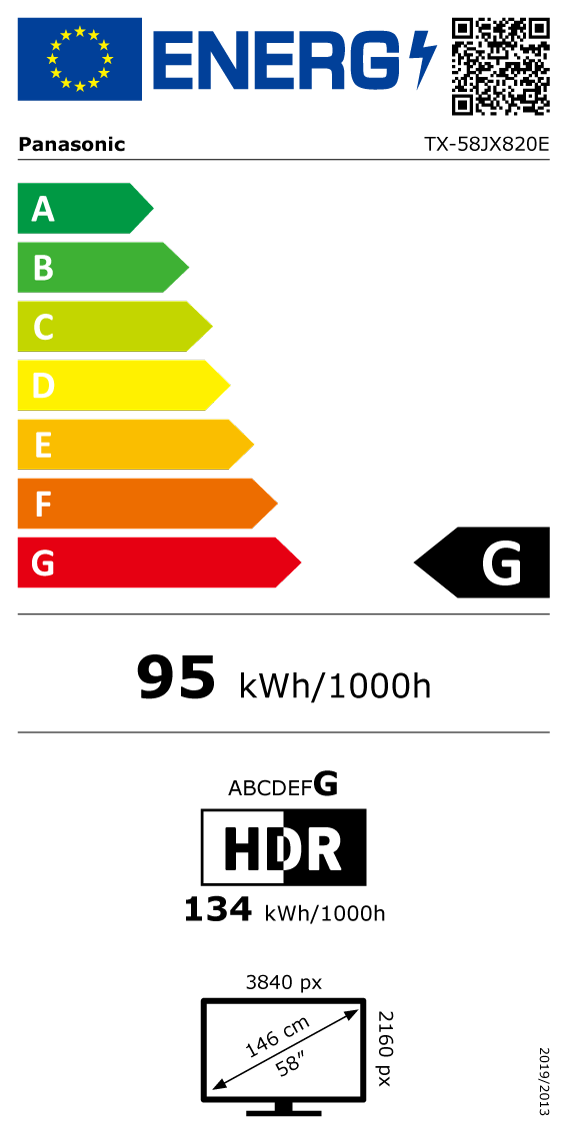

Energy Efficiency Class G
Visible Screen Size (diagonal) 146 cm / 58 inches
On mode Average Power Consumption*13 95 kWh/1000h
Standby Power Consumption 0.5W
Off mode Power Consumption 0.3W
Screen Resolution 3,840 x 2,160
Power Supply AC 220 - 240 V, 50/60 Hz
Rated Power Consumption 175 W
Ambient Sensor (CATS) Y
Included Accessory*15 TV Remote
Dimensions (W x H x D) (w/o stand)1,300 x 762 x 65 mm
Dimensions (W x H x D) (with stand)*16 1,300 x 787 x 247 mm
Weight (w/o stand) 14.3 kg
Weight (with stand) 14.8 kg
Dimension Pedestal (W x D) 1,115 x 247 mm
VESA Compatible Y
VESA Dimension (W x H) 300 x 200 mm
Outer Boxed Unit (W x H x D) 1,406 × 865 × 160 mm
Total Boxed Weight 21 kg
*1 Features and specifications are subject to change without prior notification. Internet connection is required with smart functions.
*2 All models; Supporting HDR does not increase the peak brightness capabilities of the TV panel. Full HD & HD models; The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV.
*3 Google, Android TV and Chromecast built-in a trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Requires internet connection. Subscriptions for services may be required.
*4 Amazon, Alexa is not available in certain languages and countries. Requires internet connection. Subscriptions for services may be required. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
*5 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.
*6 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions;
- viewable contents may vary depend on models,
- viewable contents may differ from those for PC,
- viewable contents may be limited.
*7 In case the password of the registered device or user is known by a third party, there is a risk of unauthorized entries. Keep your password safe. Panasonic will make no warranty for the unauthorised entries. To prevent a risk of interception, unauthorised entries and hacking, set up the proper security settings (encryption setting).
*8 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.
*9 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device.
*10 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*11 ©2020 Advanced Micro Devices, Inc. All rights reserved. AMD and FreeSync and combinations thereof are trademarks of Advanced Micro Devices, Inc.
*12 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB.
*13 Based on IEC 62087 Ed.2 measurement method.
*14 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*15 Not all the accessories are listed here.
*16 Dimension with recommended pedestal style.
*17 Supporting HSP standardized by CTA-2072 (HDR Still Photo Interface)
*18 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)).
*19 27 Languages (English / German / Italian / Spanish / French / Danish /Finnish / Swedish / Dutch / Hungarian / Czech / Romanian / Bulgarian / Polish / Norwegian / Estonian / Latvian / Lithuanian / Portuguese / Turkish / Greek / Croatian / Slovak / Slovenian / Serbian / Russian / Macedonian)
