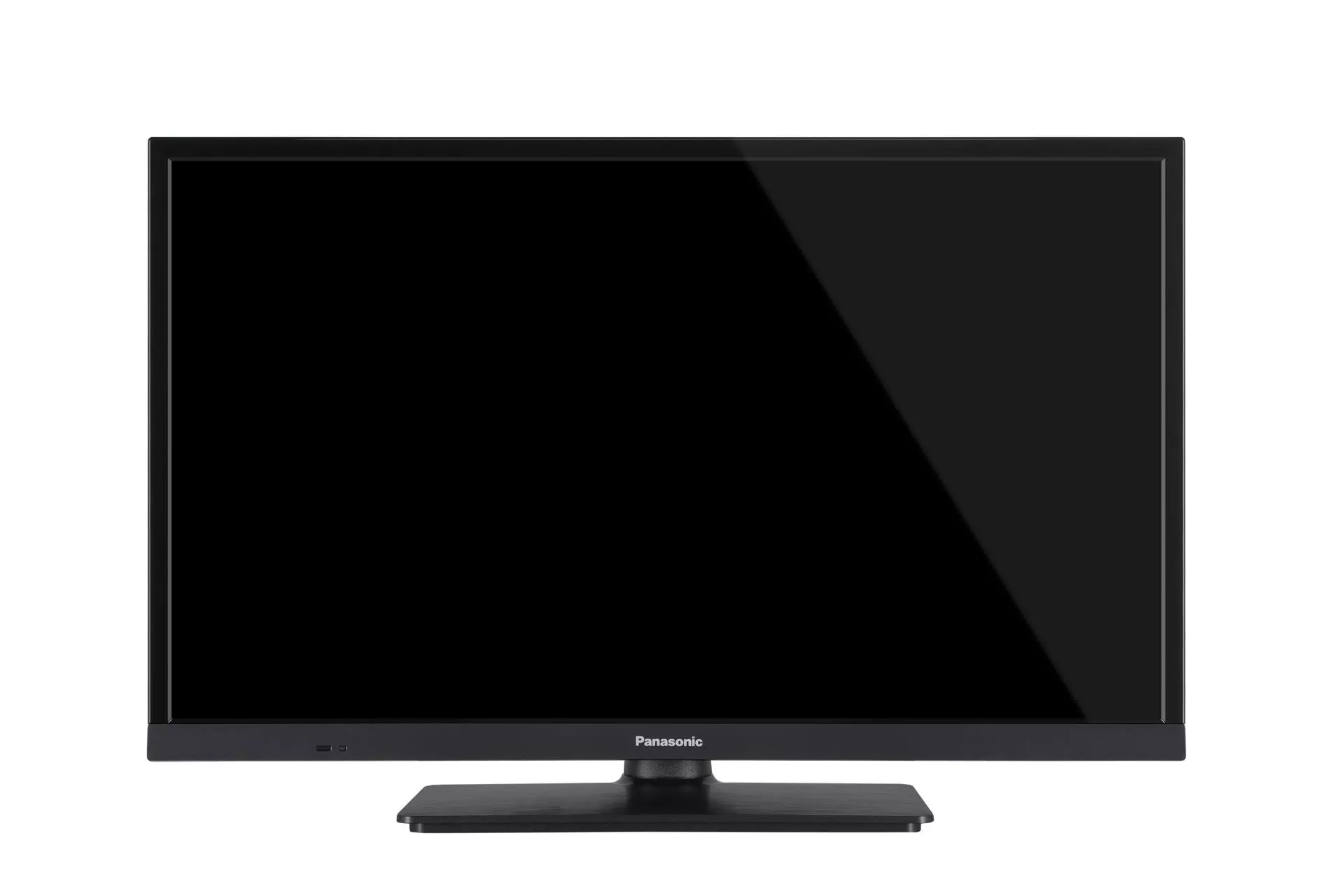

Panasonic 24" LS480 LED Smart TV tx-24ls480e

Display

Panel HD Ready

Screen Resolution 1366 (W) x 768 (H)

Panel Drive 2K 600 Hz RMR

Picture Mode User/Standard/Vivid/Sport/Movie/Game

Muti HDR Support*² HDR10/HLG

HDR Brightness Enhancer Y

Dynamic HDR Effect N

Contrast High Contrast

Colour Space N

Advanced Video Processor/Engine N

Local Dimming N

Adaptive Backlight Dimming N

THX Certified Display*³ N

isf Mode N

Sound Quality

Dolby Atmos N

Surround N

Speaker Output 5 W (2.5 W x 2)

Sound Mode

Sound mode WO/DAP User/Standard/Vivid/Sport/Movie/Music/News

Sound mode W/DAP Smart/Movie/Music/News

Smart Features

Smart TV Android TV

Voice Personal Assistant Google Assistant

Voice Guidance N

EPG Y

On Screen Display Menu Languages 35 Languages*¹6

Digital TV DVB-T/T2/C/S/S2

Twin Tuner ?

Wireless LAN Built-in Y

TV Anywhere*4 ?

In-House TV Streaming (DVB-IP) ?

Panasonic TV Remote Apps ?

Swipe & Share ?

Web Browser*5 N

(Web Browser can be downloaded from Google Play Store) Mirroring

Chromecast built in

Home Network*6 N

Bluetooth*7 Y

Bluetooth Audio Link*8 N

IP Home Control N

Media Player Y

Support Format

Video.mpg/.mpeg/.dat/.vob/.mkv/.mp4/.m4a/.m4v/.mov/.flv/.3gp/.3gpp/.ts/.m2ts/.rmvb/.rm/.avi/.asf/.wmv/.webm

Audio.mp3/.wma/.wav/.aac/.m4a/.ogm/.ogg/ac3/.eac3/.flac

Photo .jpg/.jpeg/.bmp/.png/.gif

Data Broadcasting Hbb TV 2.0.2

Teletext Reception 1000P

USB-HDD Recording*? N

Multi Window N

HDAVI Control Y

Energy Efficiency Class F

Visible Screen Size (diagonal) 60 cm / 24 inches

On mode Average Power Consumption*¹° NA

Annual Energy Consumption*¹¹ 22 kWh/annum

Standby Power Consumption <0.5W

Off mode Power Consumption NA

Screen Resolution 1366 (W) x 768 (H)

Power Supply AC 220 - 240 V, 50/60 Hz

Rated Power Consumption -

Ambient Sensor (CATS) N

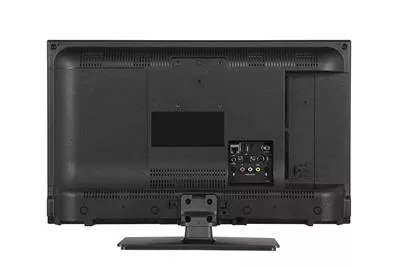

Terminal

Digital Tuner Reception DVB-T/T2/C/S/S2

Analogue Tuner Y

HDMI*¹² 1 (side), 2 (rear)

HDMI (HDCP2.2) 3

Support Feature Audio Return Channel (Input 2,rear)

HDMI1.4

USB 2 (2 side, USB 2.0 x 2)

Ethernet 1

CI (Common Interface) 1 (CI Plus, Version 1.4)

Scart Connector ?

Component Video Input shared with Composite RCA type x 1 (rear)

Digital Audio Output (Coax) 1 (rear)

Digital Audio Output (Optical) ?

PC input(VGA) + PC Audio In 1x PC input (rear) + 1xPC Audio In (via rear AV)

Headphone Output 1 (side)

General

Included Accessory*¹³ TV Remote (Bluetooth/embedded microphone)

Dimensions (W x H x D) (w/o stand) 553x334x63

Dimensions (W x H x D) (with stand)*¹4 553x372x134

Dimension Pedestal 280x22x134

Weight (w/o stand) 3.50 kg

Weight (with stand) 3.75 kg

VESA Compatible Y

VESA Dimension 75x75(M4)

Outer Boxed Unit (W x H x D) 629x114x468

Total Boxed Weight 5.00 kg

Note

*1 Features and specifications are subject to change without prior notification. Internet connection is required with smart functions.

*2 All models; Supporting HDR does not increase the peak brightness capabilities of the TV panel. Full HD & HD models; The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV.

*3 Google, Android TV and Chromecast built-in a trademarks of Google LLC; Google Assistant is not available in certain languages and countries; Requires internet connection. Subscriptions for services may be required.

*4 Amazon, Alexa is not available in certain languages and countries. Requires internet connection. Subscriptions for services may be required. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

*5 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.

*6 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions;

- viewable contents may vary depend on models,

- viewable contents may differ from those for PC,

- viewable contents may be limited.

*7 ©2020 Advanced Micro Devices, Inc. All rights reserved. AMD and FreeSync and combinations thereof are trademarks of Advanced Micro Devices, Inc.

*8 In case the password of the registered device or user is known by a third party, there is a risk of unauthorized entries. Keep your password safe. Panasonic will make no warranty for the unauthorised entries. To prevent a risk of interception, unauthorised entries and hacking, set up the proper security settings (encryption setting).

*9 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.

*10 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device.

*11 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*12 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB.

*13 Based on (EU) 2019/2021 transitional measurement method.

*14 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*15 Not all the accessories are listed here.

*16 Dimension with recommended pedestal style.

*17 Supporting HSP standardized by CTA-2072 (HDR Still Photo Interface)

*18 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)).

*19 27 Languages (English / German / Italian / Spanish / French / Danish /Finnish / Swedish / Dutch / Hungarian / Czech / Romanian / Bulgarian / Polish / Norwegian / Estonian / Latvian / Lithuanian / Portuguese / Turkish / Greek / Croatian / Slovak / Slovenian / Serbian / Russian / Macedonian)
