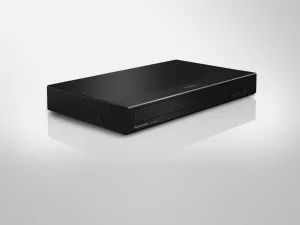

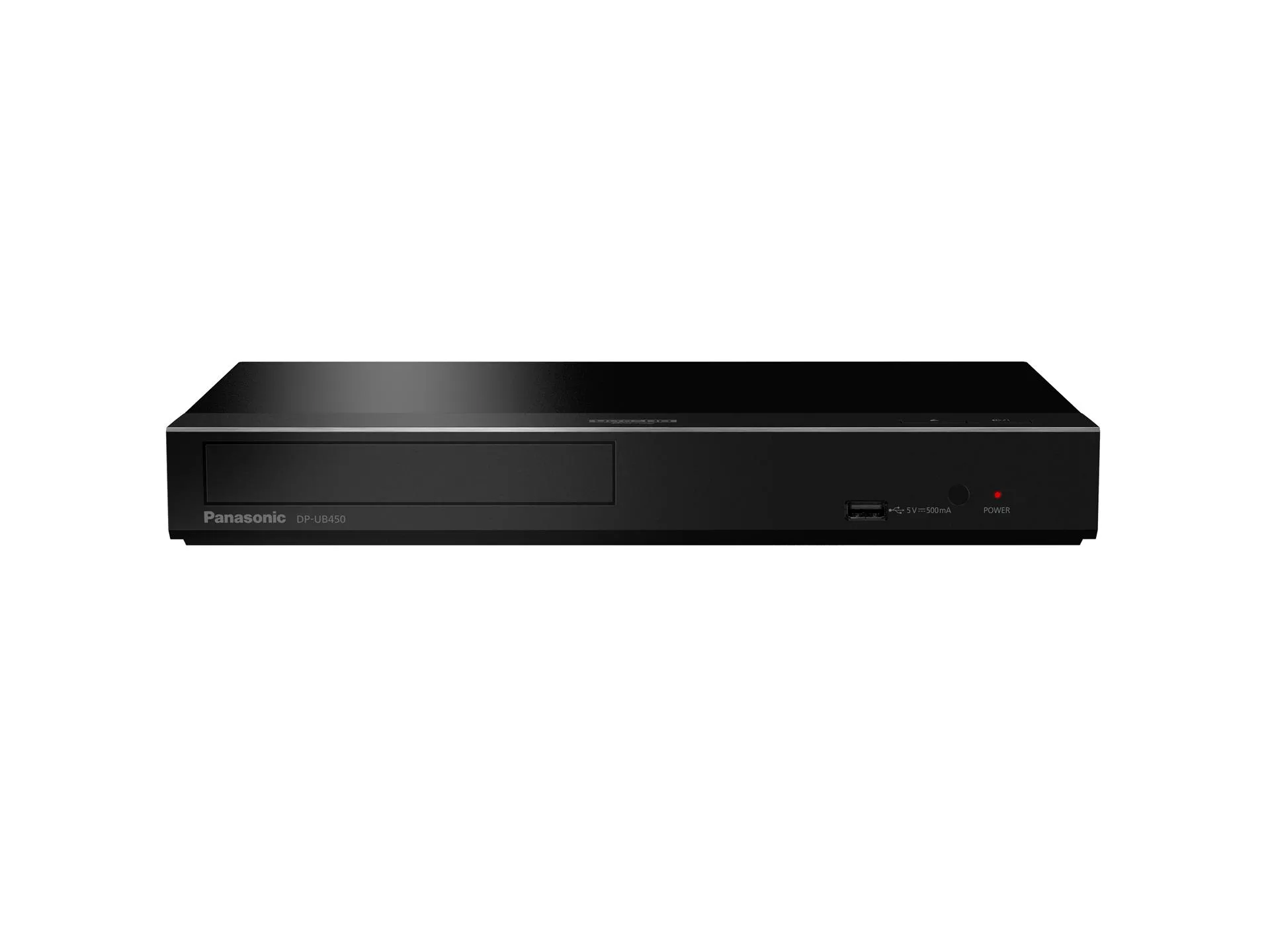

Panasonic UB450 4K UHD Blu-ray dp-ub450e-k

BD-ROM - Ultra HD Blu-ray/ FULL HD 3D/ BD-Video yes

BD-RE/ BD-RE DL (Ver.3)

BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPO yes

FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3 yes

MKV(H.264/ HEVC)/ MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2) yes

BD-R (Ver.1.3) / BD-R DL (Ver.2)

FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3 yes

BDAV/ AVCHD/ AVCHD 3D/ MKV(H.264/ HEVC)/ JPEG/ MPO yes

MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2) yes

DVD - DVD-Video yes

DVD-R*1/ DVD-R DL*1/ DVD-RW*1

DVD-Video/ DVD Video Recording yes

JPEG/ MPO yes (DVD-R/ DVD-R DL)

FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3 yes (DVD-R/ DVD-R DL)

AVCHD/ MKV(H.264/ HEVC) yes/ yes* (*DVD-R/ DVD-R DL)

MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2) yes

+R*1/ +R DL*1/ +RW*1 - Video/ AVCHD yes

CD, CD-R/ -RW

CD-DA/ DTS-CD yes

JPEG/ MPO yes (CD-R/ -RW)

FLAC/ WAV/ ALAC/ AIFF/ WMA/ AAC/ MP3 yes (CD-R/ -RW)

MKV(H.264/ HEVC) yes (CD-R/ -RW)

MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2) yes (CD-R/ -RW)

AUDIO SYSTEM

Dolby Audio (Dolby Digital/ Dolby Digital Plus/ Dolby TrueHD) yes (Decode and Bitstream Output*2)

DTS-HD Master Audio/ DTS-HD High Resolution Audio yes (Decode and Bitstream Output*2)

Dolby Atmos/ DTS-X yes (Bitstream Output*2)

FLAC yes (Max. 192 kHz/ 24 bit)

WAV yes (Max. 384 kHz/ 32 bit)

ALAC yes (Max. 192 kHz/ 32 bit (2ch))

DSD (DFF, DSF) yes (2.8 MHz (2ch/ 5.1ch), 5.6 MHz (2ch/ 5.1ch), 11.2 MHz (2ch))

AIFF yes (Max. 384 kHz/ 32 bit (2ch))

USB

Slot yes(1)

Front 1 (USB 2.0 High Speed)

Playback FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3 yes

MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC) yes

MPEG-2/ AVCHD/ AVCHD 3D yes

JPEG/ MPO yes

HIGH QUALITY PICTURE

HDR

HDR10+ yes

Dolby Vision yes

Hybrid Log Gamma(HLG) yes

HDR yes

4K Up-scaling

60p/50p/ 444 (HDMI2.0) yes*4*5

24p/ 25p yes*4*5

4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4) yes

Video on Demand in HD Quality No

Deep Colour yes

x.v.Colour*9 yes

HIGH QUALITY SOUND

TWIN HDMI yes

High Quality Network Audio Playback yes (FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3)

SMART FEATURE

Remote Control yes (Simple)

HDAVI Control 5 (VIERA Link) / HDMI CEC yes (HDMI CEC only)

Network Contents Playback (Client & Renderer) yes

External HDD Playback yes

Network Drive Access yes

BD-LiveTM*15 yes

TERMINAL

HDMI Output yes (2)

Coaxial Output yes

LAN (Ethernet) Terminal yes (for Ultra HD Blu-ray, Network Contents Playback*10, BD-LiveTM*15 and Firmware Update)

Video System PAL/ NTSC

Dimensions (W x H x D) 320 x 46 x 193 mm *17

Weight 1.2 kg

NOTE*1 Discs recorded and finalized on recording devices.

NOTE*2 HDMI connections and compatible equipment (e.g. AV Receiver) required.

NOTE*3 Enabled by software update

NOTE*4 For 4K Up-scaling playback a TV with same resolution is required.

NOTE*5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.

NOTE*6 MP4(4K/25p,30p) bit rate up to 100 Mbps/resolution up to 3840x2160.

NOTE*7 Some network content services may not be available in your country.

NOTE*8 Ultra HD Blu-ray and Photo (JPG/ MPO) are not supported.

NOTE*9 This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.

NOTE*10 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.

NOTE*11 CD sampling is done at 176.4/88.2 kHz.

NOTE*12 A device that supports the Mirroring function and AndroidTM ver. 4.2 or higher is required.

NOTE*13 Requires broadband Internet service.

NOTE*14 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives.

NOTE*15 To enjoy content, you will need to insert a USB (1GB or more of free space/ sold separately). Requires broadband Internet service.

NOTE*16 The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal.

NOTE*17 Excluding the projecting parts.

NOTE Specifications are subject to change without notice. All numbers given here are approximate.
