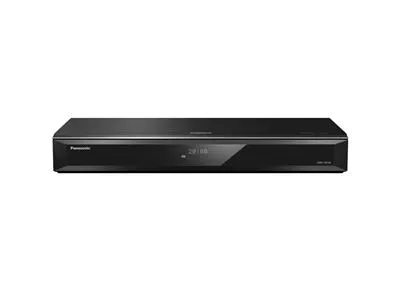

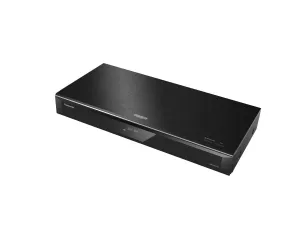

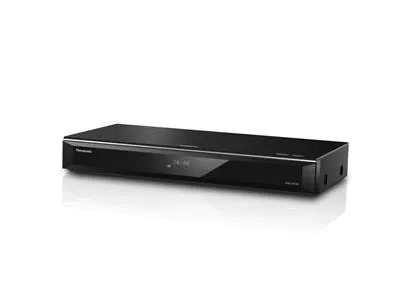

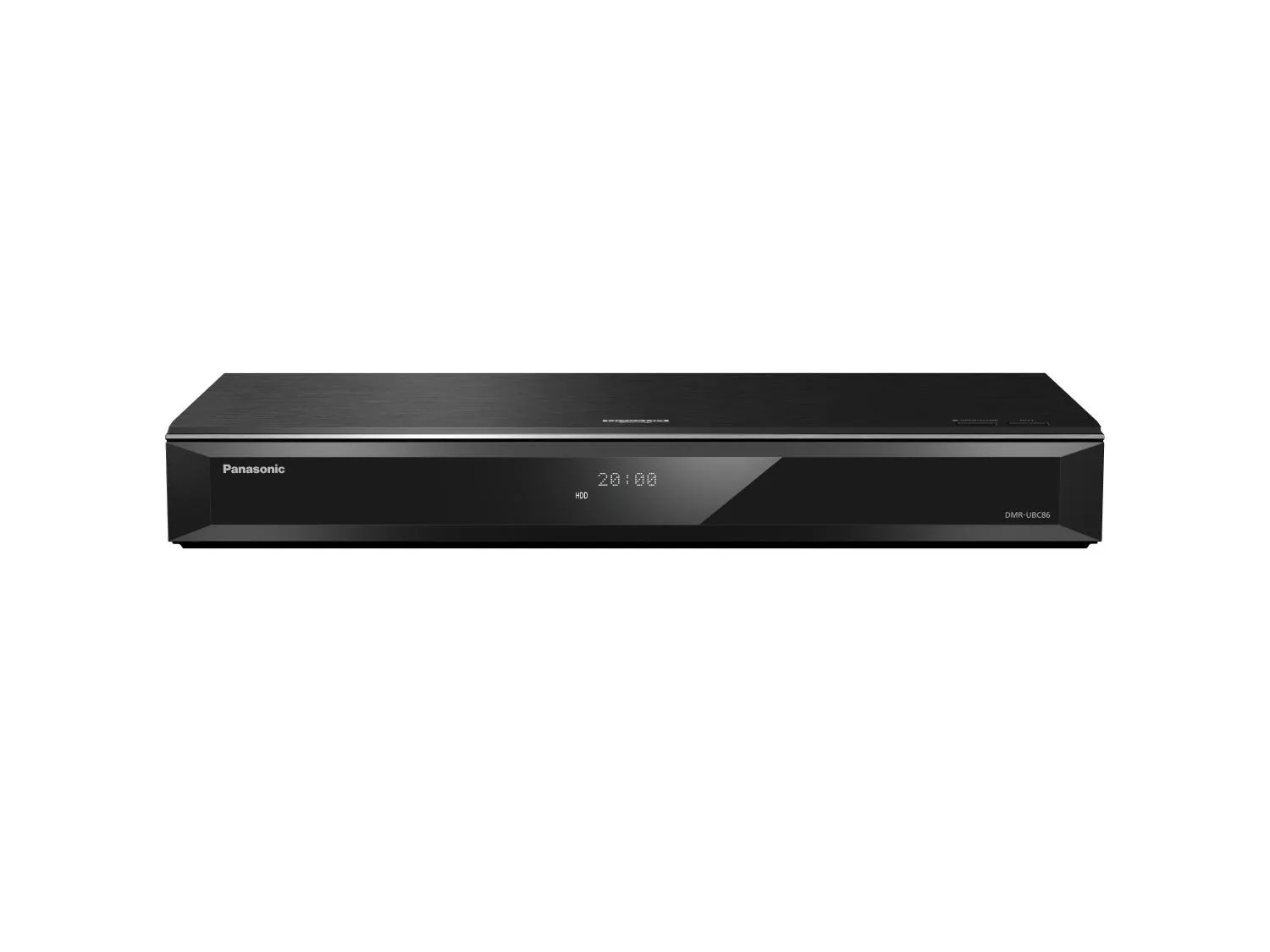

Panasonic UBC86 4K UHD Blu-ray dmr-ubc86enk

BD-ROM(Version 2.4)

FULL HD 3D/ BD-Video/ BD Live yes

Ultra HD Blu-ray yes

BD-RE/ BD-RE DL (Ver.2.1) - BDAV/ AVCHD/ AVCHD 3D/ JPEG/ MPO yes*2

BD-R (Ver.1.3/ LTH Type Ver.1.3) / BD-R DL (Ver.1.3) - BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPO yes*2

DVD - MPEG2 (Video) yes

DVD-RAM MPEG2 (VR)/ AVCHD/ JPEG/ MPO yes

DVD-R*1/ DVD-R DL*1

MPEG2 (Video)/ AVCHD/ MKV/ JPEG/ MPO yes

AAC/ ALAC/ DSD/ FLAC/ MP3/ WMA/ WAV yes

DVD-RW*1 - MPEG2 (Video/VR)/ AVCHD yes

+R*1/ +R DL*1 +VR/ AVCHD/ JPEG/ MPO yes

+RW*1 +VR/ AVCHD yes

CD CD-DA/ DTS-CD yes

CD-R/RW MKV/ JPEG/ MPO yes

AAC/ ALAC/ FLAC/ MP3/ WMA/ WAV/ CD-DA/ DTS-CD yes

BUILT-IN HARD DISK CAPACITY 1TB

Hard Disk Drive

DR Mode, Ultra HD (28 Mbps) [Approx. 75 h*3

DR Mode, DVB-T2 HD (8 Mbps) [Approx.] 259 h*3

DR Mode, DVB-T2 SD (4 Mbps) [Approx.] 518 h*3

DR Mode, HD (14 Mbps) [Approx.] 150 h*3

DR Mode, SD (5 Mbps) [Approx.] 422 h*3

HG/ HX/ HE/ HL/ HM Mode [Approx.] 157 h/ 235 h/ 353 h/ 472 h/ 684 h

XP/ SP/ LP Mode [Approx.] 215 h/ 431 h/ 862 h

25 GB BD-RE/ BD-R

DR Mode, DVB-T2 HD (8 Mbps) [Approx.] 6 h 30 min*3

DR Mode, DVB-T2 SD (4 Mbps) [Approx.] 13 h 00 min*3

DR Mode, HD (14 Mbps) [Approx.] 3 h 30 min*3

DR Mode, SD (5 Mbps) [Approx.] 10 h 15 min*3

HG/ HX/ HE/ HL/ HM Mode [Approx.] 4 h/ 6 h/ 9 h/ 12 h/ 17 h 30 m

XP/ SP/ LP/ EP Mode [Approx.] -

50 GB BD-RE DL/ BD-R DL

DR Mode, DVB-T2 HD (8 Mbps) [Approx.] 13 h 00 min*3

DR Mode, DVB-T2 SD (4 Mbps) [Approx.] 26 h 00 min*3

DR Mode, HD (14 Mbps) [Approx.] 7 h 30 min*3

DR Mode, SD (5 Mbps) [Approx.] 21 h 00 min*3

HG/ HX/ HE/ HL/ HM Mode [Approx.] 8 h/ 12 h/ 18 h/ 24 h/ 35 h

XP/ SP/ LP/ EP Mode [Approx.] -

4.7 GB DVD-RAM/ DVD-R/ -RW/ +R/ +RW - XP/ SP/ LP Mode [Approx.] 1 h/ 2 h/ 4 h

8.5 GB DVD-R DL/ +R DL - XP/ SP/ LP/ EP Mode [Approx.] 1 h 45 m/ 3 h 35 m/ 7 h 10 m

9.4 GB DVD-RAM XP/ SP/ LP Mode [Approx.] 2 h/ 4 h/ 8 h

USB

Slot yes(2)

Front 1 (USB 3.0 Super Speed) *4

Rear 1 (USB 2.0 High Speed)

Playback

Mass Strage, MPEG2(TS/PS)/ MP4/ MKV/ JPEG/ MPO yes

Mass Strage, MP4(HEVC)/ MKV(HEVC)/ TS(HEVC) yes

Mass Strage, AAC/ ALAC/ DSD/ FLAC/ MP3/ WMA/ WAV yes

External HDD, Broadcast Stream yes

Transfer

Mass Strage, to HDD MP4, AVCHD, AVCHD 3D, MKV, JPEG, MPO, AAC, ALAC, DSD, FLAC, MP3, WMA, WAV

Mass Strage, to BD-RE/-R AVCHD, AVCHD 3D, JPEG (BD-RE only), MPO (BD-RE only)

Mass Strage, to DVD-RAM JPEG, MPO

External HDD, to HDD Broadcast Stream

External HDD, to BD-RE/-R Broadcast Stream

External HDD, from HDD Broadcast Stream

HIGH QUALITY PICTURE

HDR - 4K PRO HDR, ULTRA HD PREMIUM yes*5*6

HCX Processor for Ultra HD Blu-ray(HCXHollywood Cinema Experience) - -Precise Chroma Processing, -Optimum HDR Processing yes*7

HLG yes

4K Up-scaling 60p/50p/ 444 (HDMI2.0) yes*5*8

24p yes*5*8

4K Direct Chroma Up-scaling yes*8

4K Video Playback yes*9 (4K 50P/25P MP4)

4K JPEG Playback yes

HIGH QUALITY SOUND

Pure Audio on HDMI (HDMI Low Clock Jitter Process) yes

High Quality Network Audio Playback (DLNA) yes (FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3)

Pure Sound Mode yes

192kHz Surround Re-Master yes

Audio D/A Converter 192kHz/24bit*10

SMART FEATURE

TV > IP yes

TV Anywhere yes*11*12*13*14

Multiroom TV Streaming yes

Remote Viewing yes*11*12*13*14

Panasonic Media Center App yes*15

Web Browser yes*16

Extra Storage with External HDD yes

Miracast? yes*17

Internet Apps yes*12 (Netflix etc)

Wireless LAN System yes (Built-in) IEEE802.11 a/b/g/n

DLNA

as a client (AV) MPEG(TS/PS), MP4, AVCHD, MKV, JPEG, MP4(HEVC), MKV(HEVC), TS(HEVC), AAC, ALAC, DSD, Dolby Digital, FLAC, LPCM, MP3, WMA, WAV

as a client (PC) Windows support

as a server MPEG(TS/PS), AVCHD, HEVC(4K/2K), JPEG

CAS Recording yes*18

Keyword Recording yes

Quick Operation - Direct Navigator yes*19

Quick Operation - EPG yes*19

Quick Operation - Disc Tray Opening yes*19

HDAVI Control (VIERA Link) yes

Pause Live TV & Rewind Live TV yes

TERMINAL

HDMI Output yes (1)

Digital Audio Output yes (1) Coaxial

LAN (Ethernet) Terminal yes

Common Interface Slot yes (2)

TUNER

Tuner System DVB-C & DVB-T2 HD/ T2/ T x 2

Dimensions (W x H x D) 430 x 62 x 201 mm*20

Weight 3.2 kg

NOTE*1 Discs recorded and finalized on recording devices.

NOTE*2 T2(2K HEVC) can be record onto Blu-ray Disc but. Ultra HD(4K HEVC) can be recorded with HD resolution onto Blu-ray Disc.

NOTE*3 The bit rates are approximate. Recording time of DR mode may vary depending on bit rate of broadcasting.

NOTE*4 Use front USB to playback 4K contents.

NOTE*5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.

NOTE*6 To view video in 4K/HDR, please connect to the device(display) and the terminal compatible with HDCP 2.2, 4K/60p/444.and HDR signal.

NOTE*7 Supervised by Panasonic Hollywood Laboratory

NOTE*8 For 4K Up-scaling playback a TV with same resolution is required.

NOTE*9 The unit is compatible with MP4(4K/50p,60p) bit rate up to 100Mbps/resolution up to 4096x2160.

NOTE*10 Sampling frequency is set to 88.2kHz at CD playback.

NOTE Sampling frequency is set to 176.4/88.2kHz at CD playback.

NOTE*11 Smartphone, tablet. In case PC only remote recording is available. access URLhttps//rec.panasonic.com/pid/home

NOTE*12 Requires broadband internet service.

NOTE Service may be discontinued either temporarily or permanently without notice.

NOTE*13 Remote Viewing and Multiroom TV Streaming are not possible for some pay-per-view programs.

NOTE*14 Access is possible for only one device at a time from outside the home.

NOTE*15 Download on the App Store. Download on Google Play?. http//av.jpn.support.panasonic.com/support/global/cs/av/mediacenter/

NOTE*16 Recorder's web browser doesn't support flash & some characters' set (e.g. Chinese etc.). Some features of websites may not be available on the web browser.

NOTE*17 Compatible with AndroidTM devices, Ver.4.2 and above and Miracast certified. For information on whether the smartphone, etc. supports Miracast, contact the manufacturer of the device.

NOTE*18 Depending on the programme, it may not be possible to play back/decrypt after recording.

NOTE*19 Quick Start" needs to be set to "ON" and "Power Save for Network Standby" needs to be set to "OFF" to activate "Quick Start".

NOTE*20 Excluding the projecting parts.
